Wahl Senior #8500

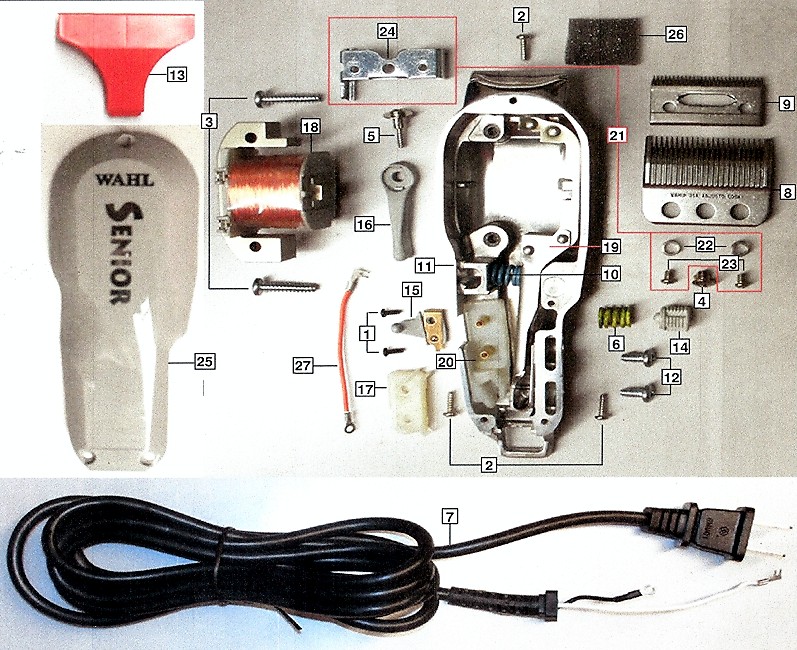

Wahl Sr.8500.jpg (87452 bytes)
(Click on image for a larger view)

Item# Part# Description Price
1 00491-001 Terminal Screw .25
2 00494 Screw .25
3 00503 Coil Screw .25
4 00508-400 Blade Screw .50
5 00512-100 Screw w/Washer for Blade Lever .50
6 00521 Tuning Spring - Yellow .25
7 Wahl Cord 647-300.JPG (144052 bytes) 00647-300 Cord
(Standard)
8.85
7 Wahl Cord 647-301.JPG (169652 bytes) 00647-301 Cord
(Long Wire)
8.85
8 01011
9 01052-250
10 01177 Tuning Spring - Blue .25
11 01363-007 Case 16.60
12 01567-200 LH Torx Dr Arm Screw .25
13 08019-100 Blade Guard - Red .25
14 08117-100 Black Adj. Screw .30
15 08129-001 Switch - Gray 1.00
16 08214 Gray Blade Lever 1.25
17 08411 Switch Cover .60

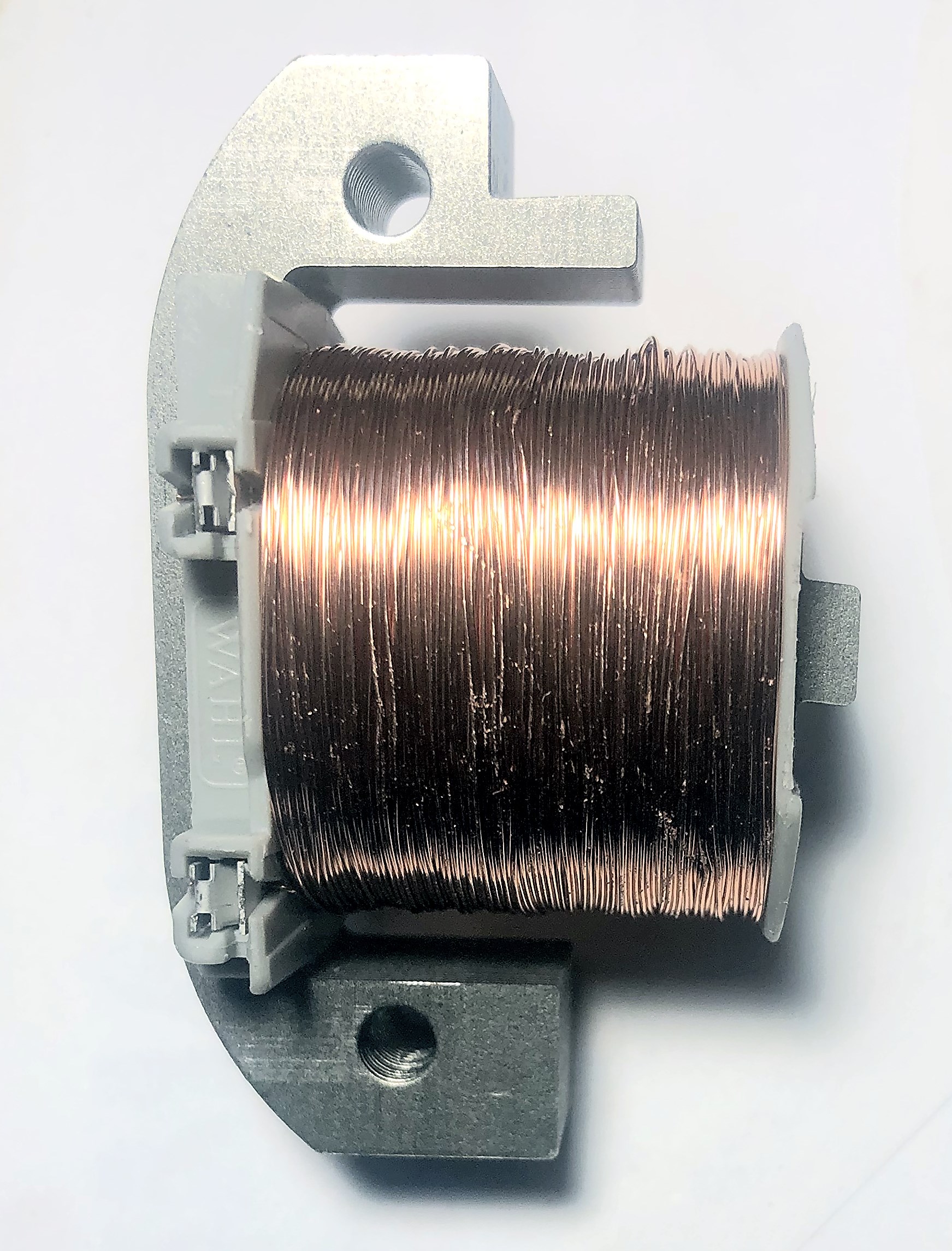

18 Field 8427-300.jpg (764295 bytes) 8427-300 Coil 7.16
18 8859-2920.jpg (1162564 bytes) 8859-2920 Coil 7.16
19 8505-201_arm.JPG (120306 bytes) 08505-201 Arm 4.80
19 8505_arm.JPG (186649 bytes) 8505 Arm 4.80
19 8857_arm.JPG (126407 bytes) 8857 Arm 4.80
20 08508-001 Switch Base 1.60
22 00323-100 Bottom Blade Bushing .25
23 00493-101 Phillips Head Screw .25
24 08516 Blade Slide Assm
w/ bushings & screws
2.25
25 08531-064 Lid 3.00
26 94104 Foam .35
27 97699-050 Orange Jumper Wire .50
