Andis/Heiniger

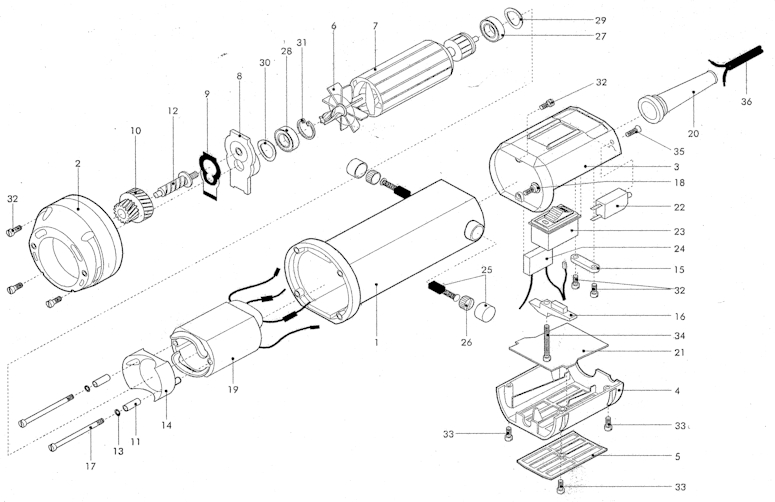

LG-S Sheep Shear Motor Parts







Item No. # Part No. # Description Qty. Req'd Price / Buy
1 #701-601 Motor Hsg 1 $40.57

2 #701-602 Gear Box 1 $8.00

3 #701-603 Switch Hsg 1 $12.25

4 #701-605 Switch Hsg Under 1 $7.10

5 #701-607 Filter Complete 1 $5.44

6 #701-608 Fan Wheel 1 $2.95

7 #701-625 Rotor Assm Complete
with fan wheel
110-120 V
1 $85.00

8 #701-610 Centering Bush 1 $6.80

9 #701-612 Seal 1 $3.70

10 #701-613 Gear Wheel 21/12 Teeth 1 $31.75

11 #701-614 Distance Bush 2 $.60

12 #701-615 Spindle 1 $3.05

13 #701-616 Washer 2 $.25

14 #701-617 Air Stream Leading Piece 1 $2.16

15 #701-671 Cable Grip (USA) 1 $.60

16 #701-619 Switch Grip 1 $.75

17 #701-620 Fillister Head Screw M3x72.5 2 $.75

18 #701-621 Retaining Screw M3.5 1 $.85

19 #701-629 Stator Assm. Complete 110/120v 1 $77.72

20 #712-111 Anti Kink Sleeve USA 1 $2.33

21 #701-627 Dust Cover 1 $1.61

22 #701-676 Overload Security Switch 1.8A / 110/120v 1 $19.70

23 #701-631 Main Switch 1 $8.27

24 #701-669 Capacitor 0.15uf / 110/120v 1 $5.61

25 #701-633 Brush with Spring & Protection Cap (Set of 2) 1 $6.11

26 #701-634 Brush Cap 2 $.80

27 #701-635 Ball Bearing 626 zz 1 $4.35

28 #701-636 Ball Bearing 608 zz 1 $12.78

29 #701-637 Spring Disc .626" 1 $.35

30 #701-638 Spring Disc .608" 1 $.30

31 #701-639 Circlip 022 1 $.30

32 #701-640 Fillister Head Screw
M 3.5x8
5 $.25

33 #701-641 Fillister Head Screw
M 3X6
4 $.25

34 #701-642 Fillister Head Screw M3x25 1 $.25

35 #701-643 PT Screw KA 25x6 1 $.25

36 #701-679 Cable with Plug 1 $15.10

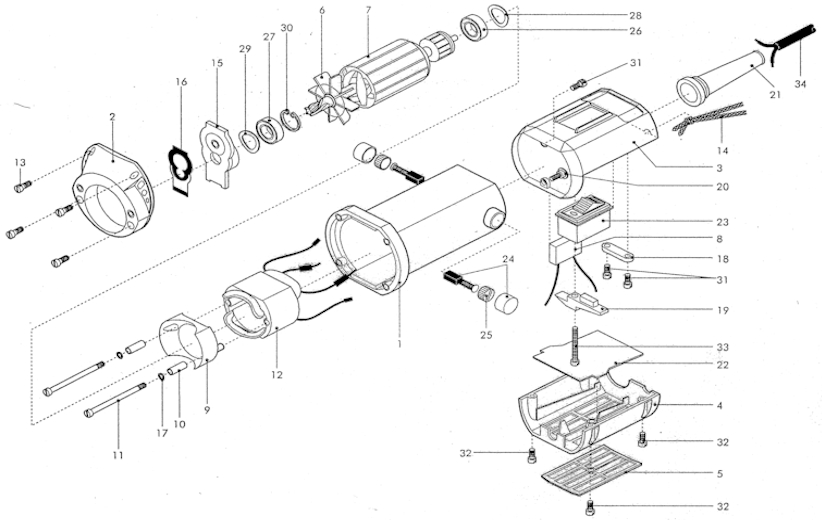

Andis HC Motor Parts




Item No. # Part No. # Description Qty. Req'd Price / Buy
1 #701-801 Motor Hsg 1 $43.84

2 #701-803 Gear Box 1 $14.44

3 #701-805 Switch Hsg Upper 1 $18.06

4 #701-806 Switch Hsg Under 1 $6.76

5 #701-807 Filter Complete 1 $7.94

6 #701-808 Fan Wheel 1 $5.30

7 #701-838 Rotor HC Complete
110-120 V
1 $224.36

8 #701-812 Capacitor 0.15uf HC 110/120v 1 $6.53

9 #701-817 Air Stream Leading Piece 1 $6.52

10 #701-818 Distance Bush 1 $.99

11 #701-820 Fillister Head Screw 3x45 2 $.67

12 #701-839 Stator Complete HC 110/120v 1 $92.20

13 #701-824 Fillister Head Screw M3.5x6 4 $.42

14 #701-825 Nylon Cord Black 1 $10.68

15 #701-610 Centering Piece 1 $15.48

16 #701-612 Seal 1 $9.64

17 #701-616 Washer M3 2 $.38

18 #701-671 Cable Grip USA 1 $1.49

19 #701-619 Switch Grip 1 $1.71

20 #701-621 Retaining Screw M3.5 1 $2.03

21 #712-111 Cable Sleeve USA 1 $4.53

22 #701-627 Dust Cover 1 $4.40

23 #701-631 Main Switch 1 $22.19

24 #701-633 Brush with Spring & Protection Cap (Set of 2) 1 $17.49

25 #701-634 Brush Cap 2 $1.57

26 #701-635 Ball Bearing 626 zz 1 $13.80

27 #701-636 Ball Bearing 608 zz 1 $13.03

28 #701-637 Spring Disc 626 1 $.88

29 #701-638 Spring Disc .608 1 $.88

30 #701-639 Circlip 022 1 $.81

31 #701-640 Fillister Head Screw M3.5x8 Tuflok 3 $.60

32 #701-641 Fillister Head Screw
M 3x6
4 $.42

33 #701-642 Fillister Head Screw
M 3X25
1 $2.61

34 #701-679 Cable with Plug 1 $40.52

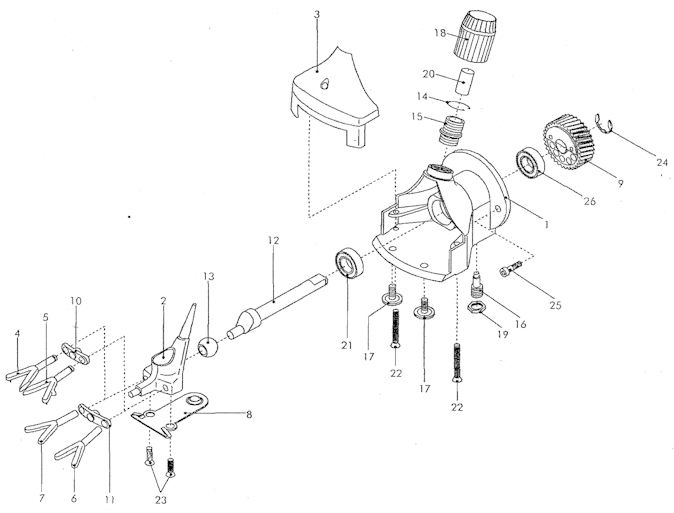

Andis/Heiniger LG-S Head Parts





Item No. # Part No. # Description Oty. Req'd Price

Buy

1 #717-708 Shear Head Case 1 $26.58

2 #717-701 Swiveling Fork 1 $59.27

3 #717-724 Housing Cover Black 1 $17.75

4 #717-704 Prong 2 1/2" Narrow Right Option $37.26

5 #717-705 Prong 2 1/2" Narrow Left Option $37.26

6 #717-706 Prong 3" Wide Left 1 $15.50

7 #717-707 Prong 3" Wide Right 1 $15.50

8 #717-709 Tension Link Spring 1 $14.26

9 #717-711 Gear 30 Teeth Black 1 $8.33

10 #717-712 Gauge Plate 2 1/2" Narrow Option $24.47

11 #717-713 Gauge Plate 3" Wide 1 $10.50

12 #717-715 Crank Spindle 1 $10.16

13 #717-716 Crank Roller 1 $3.50

14 #717-717 Tension Lock Spring 1 $.95

15 #717-718 Lid Bush 1 $10.60

16 #717-719 Fulcrum Post 1 $1.83

17 #717-720 Comb Screw 2 $2.50

18 #717-721 Tension Nut 1 $11.82

19 #717-722 Locknut 1 $1.65

20 #717-723 Sliding Sleeve 1 $9.66

21 #717-725 Bearing 1 $7.60

22 #717-726 Countersunk Head Screw
M4 x 28
2 $.35

23 #717-727 Countersunk Head Screw
M4 x 8
2 $.50

24 #706-524 Circlip Benzing for Gear Wheel 1 $.25

25 #706-523 Pan Head Screw M4 x 10 2 $.25

26 #701-636 Bearing 1 $5.75

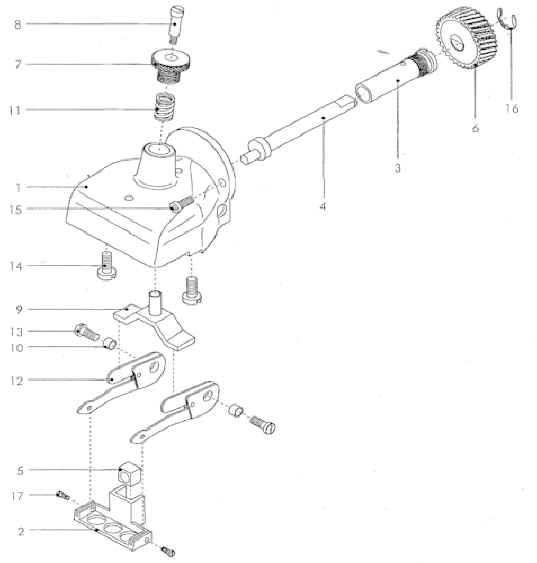

Andis HC Head Parts



Item No. # Part No. # Description Qty Req'd Price Buy
1 #706-501 Clipper Head Case 1 $60.98

2 #706-503 Cutter Driving Carrier 1 $64.61

3 #706-505 Crank Spindle Sleeve 1 $15.05

4 #706-506 Crank Spindle 1 $15.29

5 #706-507 Crank Drive Block 1 $5.22

6   Gear Wheel
A #701-830 HC 31 Tooth Gear Wheel 1 $22.01

B #706-508 LG-C 30 Tooth Gear Wheel 1 $18.89

7 #706-509 Tension Screw 1 $7.99

8 #706-510 Distance Screw 1 $3.82

9 #706-511 Pressure Plate 1 $8.24

10 #706-514 Centering Ring 2 $1.89

11 #706-517 Pressure Spring 1 $2.57

12 #706-518 Laminated Springs Complete 2 $13.51

13 #706-520 PH Screw M5 x 10 2 $.60

14 #706-521 Blade Screw M6 x 14 2 $6.23

15 #706-523 PH Screw M4 x 10 2 $.74

16 #706-524 Circlip Benzing for Gear Wheel 1 $.56

17 #706-525 Cylindric Screw with Shank M3 x 6 2 $1.53

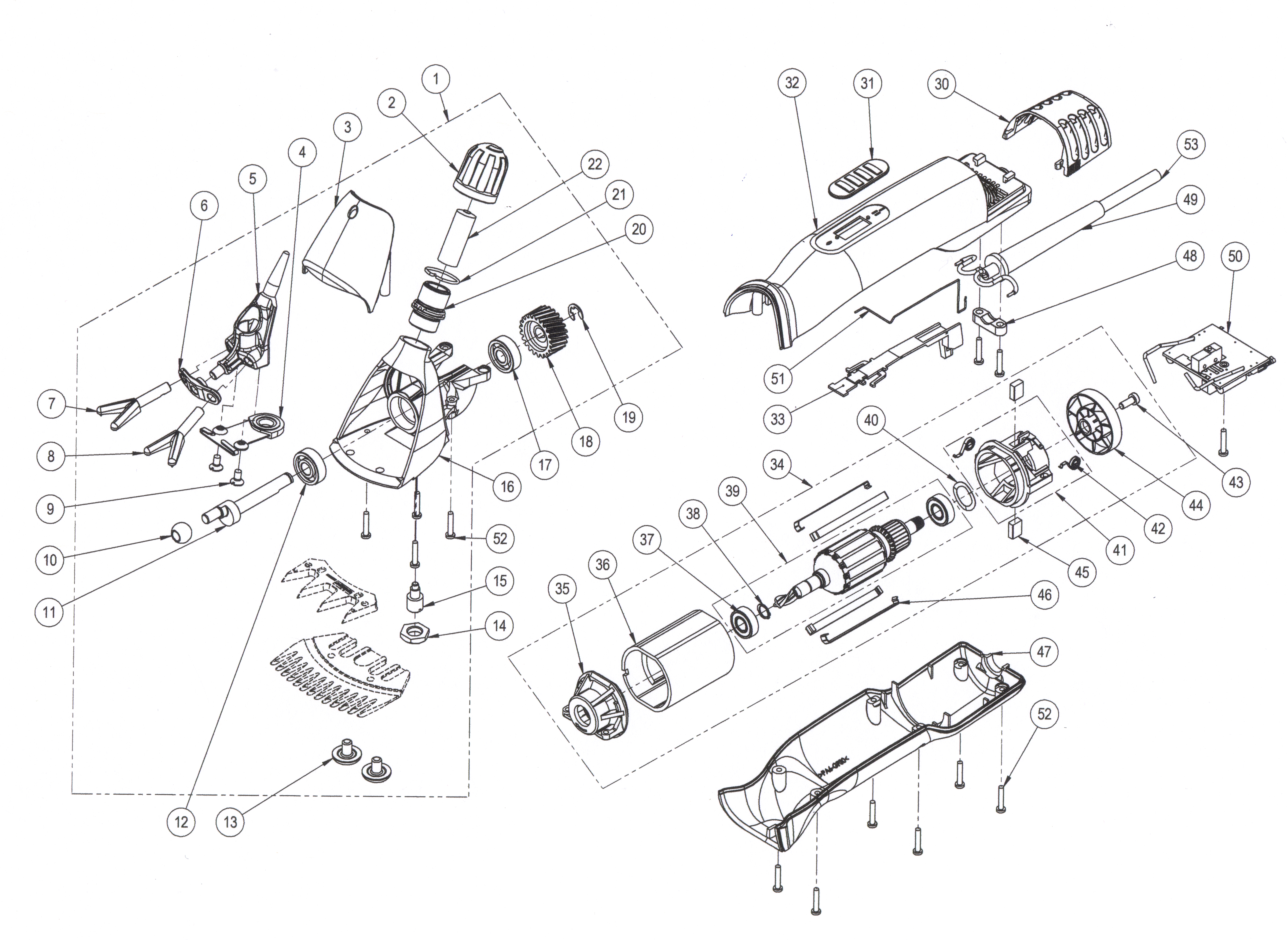

Heiniger Xpert Parts








Item No. # Part No. # Description Qty Req'd Price Buy
1 708-240 Sheep Shearing Head
w/o Blades
1
2 708-260 Tension Nut 1 8.95

3 708-250 Shearing Head Cover 1 1.10

4 717-709 Retaining Spring 1 14.30

5 717-701 Swiveling Fork 1 59.35

6 717-713 Gauge Plate 3" 1 10.40

7 717-707 Chicken Foot 3" Right 1 15.50

8 717-706 Chicken Foot 3" Left 1 15.50

9 717-727 Countersunk Screw
M4 x 8
2 .45

10 721-106 Ball 1 3.45

11 708-245 Crankshaft 1 12.00

12 717-725 Ball-Bearing 1 7.65

13 717-720 Comb Screw 2 2.25

14 721-103 Locknut 1 1.70

15 717-719 Center Post 1 14.30

16 708-241 Shear Head Case 1 50.28

17 701-636 Ball-Bearing 1 5.60

18 708-243 Cogwheel 1 5.45

19 706-524 Circlip for Shaft 1 .25

20 721-110 Tension Nut Bushing 1 11.80

21 721-111 Tension Ret. Ring 1 .90

22 708-246 Sliding Sleeve 1 6.25

30 708-070 Air Filter 1 3.35

31 708-061 Switch Lever 1 .50

32 708-030 Upper Motor Hsg. 1 27.50

33 708-060 Catch Spr. f/Switch 1 1.10

34 708-102 Motor 240v 1
34 708-103 Motor 120v 1 173.20

35 708-110 Bearing Flange - Front 1 1.30

36 708-138 Stator 1 41.95

37 708-120 Ball Bearing 2
38 708-122 Circlip 1 .20

39 708-132 Rotor 240v w/bearing 1
39 708-133 Rotor 120v w/bearing 1 99.15

40 701-637 Spring Washer 1 .35

41 708-111 Bearing Flange Rear
w/Carbon Brush Springs
1 6.65

42 708-124 Carbon Brush Spring 2 1.40

43 706-523 PH-Screw M4 x 10 1 .25

44 708-123 Fan Wheel 1 1.00

45 708-118 Carbon Brushes 240v 2
45 708-119 Carbon Brushes 120v 2 1.50

46 708-115 Motor Ret Clamp 4 .35

47 708-050 Motor Hsg Lower 1 10.95

48 707-082 Cable Grip 1 .60

49 707-080 Anti-kink Sleeve 1 1.30

50 708-080 PCB 240v 1
50 708-081 PCB 120v 1 51.60

51 708-125 Contact Wire 1 .50

52 707-557 PT Screw Kombitorx
KA 30 x 16
11 .25

53 707-057 Cable w/ US Plug 1 17.95
